Yale Digital Door Lock YDR323GN

$699.00 (GST inclusive)

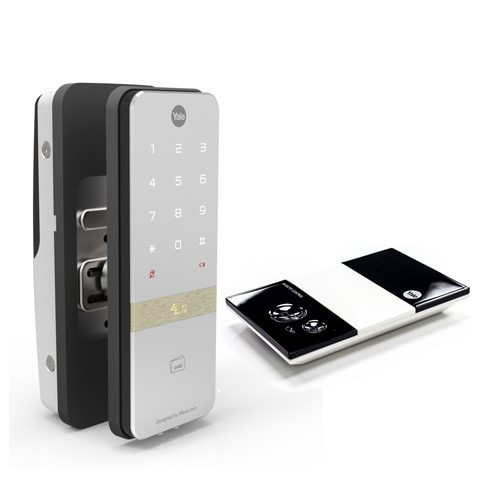

  • Yale YDR323GN Digital Door Lock
  • Authentic Yale Digital Door Lock
  • Design specially for gates in SG
  • Vertical Rim Type Lock
  • Voice Guide Feature (in English)
  • Password or Card Identification
  • Up to 20 cards user capacity
  • Vertical Rim Lock Designed for Gate

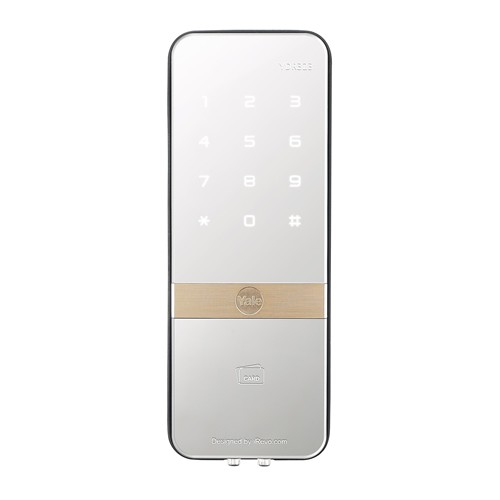

  • Mirror style touch pad
  • Unique Scramble code feature
  • Break-in Damage Alarm
  • Fire Detection Feature (Heat Senor)
  • Comes with Remote Control
  • 10 Extra Cards/Keytags*
  • Installation Included
  • 2 Years Product Warranty



Yale YDR323GN – Specially Designed for the Metal Gates which are unique in Singapore.


»Designed specially for metal gates
»PIN Code: 4 -12 digits
»Fake PIN code to prevent code exposure
»Promixity Cards: up to 20 users

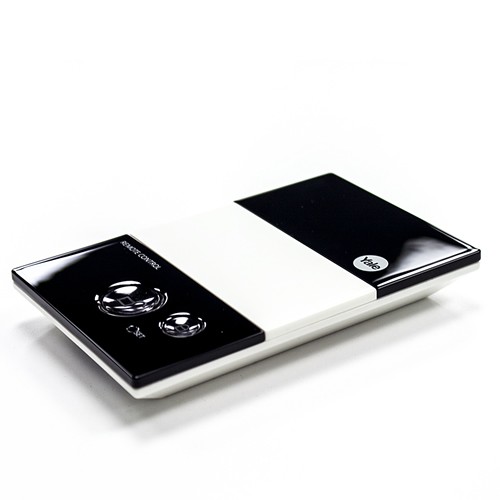

»Comes with remote control
»Elegant mirror style touch pad

Technical Details:
»Pin Code: 4-12 digits
»Color: Mirror Finish
»Motorized Rim Lock
»Using 4 x AA batteries
»Operation Temperature: -15 to +55C
»Front body: 36(D) x 72(W) x 185(H)(mm)
»Back body: 13(D) x 66(W) x 179(H)(mm)

Warranty: 2 years product warranty with the first year service warranty from the date of delivery and installation.

*10 Free access cards or key tags (or mixed, 10 pcs in total) will be provided by SafeTrolley.com (Owned & Managed by Wise Group Pte. Ltd.). The free access cards / key tags will be mailed out 5 working days after installation or payment whichever is later, upon email or phone request. The design and appearance of the free access cards / key tags are different from the original ones that come with the digital lock package.

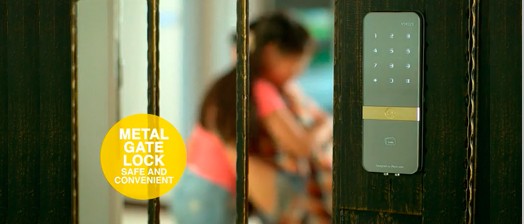

Yale YDR323GN – Before and after installation.
