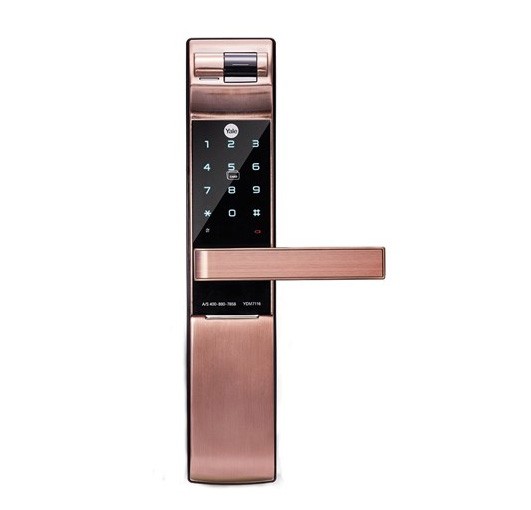

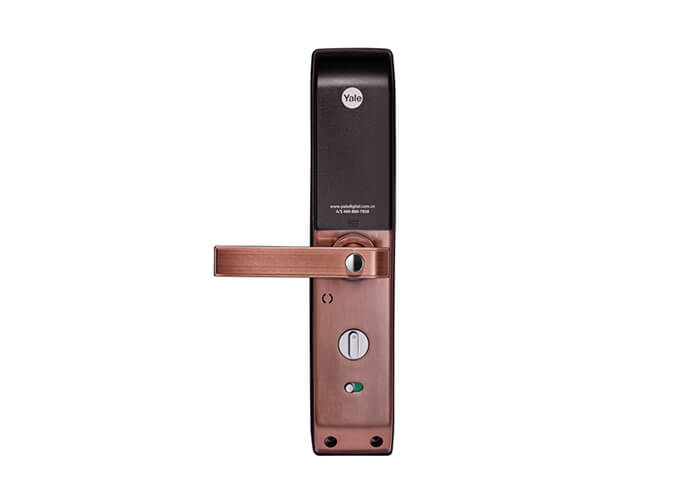

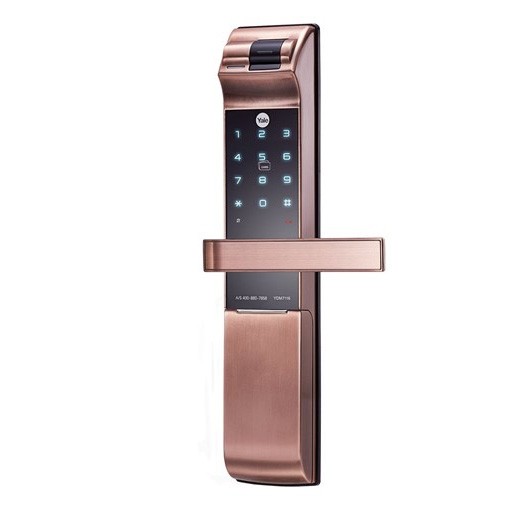

Yale Digital Door Lock YDM7116RB

$799.00 (GST inclusive)

  • Type : Mortise lock
  • Up to 20 Fingerprints
  • Up to 40 Cards
  • Up to 4 - 10 digits PIN
  • 2 Mechanical keys
  • Thickness : 40-80mm, suitable wooden door.
  • Backset : 60 / 70mm
  • Front body dimension : 68(W) x 340(H) x 40.18(D)mm
  • Back body dimension : 72(W) x 344(H) x 36(D)mm


YDM 7116RB - Digital Lock 5-in-One

Features & Benefits

  • Various Access
    YDM7116RB has 5-in-one to access the lock Fingerprint, Pin Code, RFID Card, Key Override, Bluetooth (via Yale Link app).
  • One-touch Fingerprint Verification Method (Easy Scan)
    Easy Scan technology has been applied to Conveniently read a fingerprint in one touch to enter conveniently.
  • Fake PIN Code
    To prevent the PIN Code from being exposed, it allows you to enter Fake numbers before or after entering your actual PIN Code.|
  • Mechanical key override (2 keys)
    For emergency, it can also be unlocked with a mechanical key.
  • Bluetooth - via Yale Link app
    YDM7116RB is compatiable with Bluetooth access available on your Smartphone (with Bluetooth module module).
  • Remote Control (Optional)
    Remote control is availble for purchase. It is using Wireless Floating ID technology and works up to 50m.
  • WiFi supported - via Yale Bridge (Optional)
    Remotely access your digital lock from anywhere. Able to track who access your door. Runs on 2.4Ghz WiFi bandwidth.
  • Normal / Master mode
    For multi-user environment, YDM7116RB can be to Security (Master) mode that the master can register and delete each user while Normal mode controls all the users at one time.
  • Voice GuideFeature
    As the voice guide is offered that let you know the operation status how to set each features, mode for easier and more convenient use.
  • Operation status notification
    Whenever any operation is made, the keypad informs you what is happened through different alignment of the numbers.
  • Internal Forced Lock
    It is a security-enchancing function that 'disables' authentication methods such as passwords, RFID cards and fingerprints from outside when setting up functions indoors.
  • Automatic Locking
    The Yale series automatically locks the door after checking it is properly closed. (Manual operation is also available.)
  • Low battery alarm and emergency power supply terminal
    It warns in case of low battery with alarm and LED. When the batteries are completely discharged, you can easily supply emergency power to the lock with a standard 9V battery.
  • Alarm (Break-in / Damage)
    80dB alarm goes off if anyone attempts to damage the lock or force the door open, or if the lock detects.
