Description

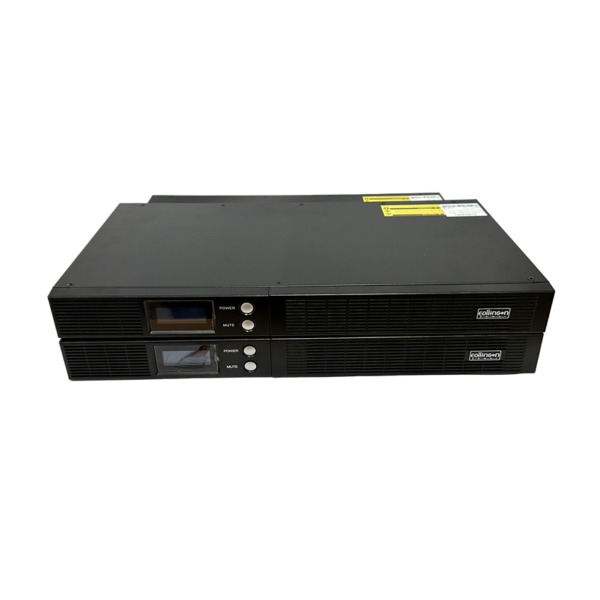

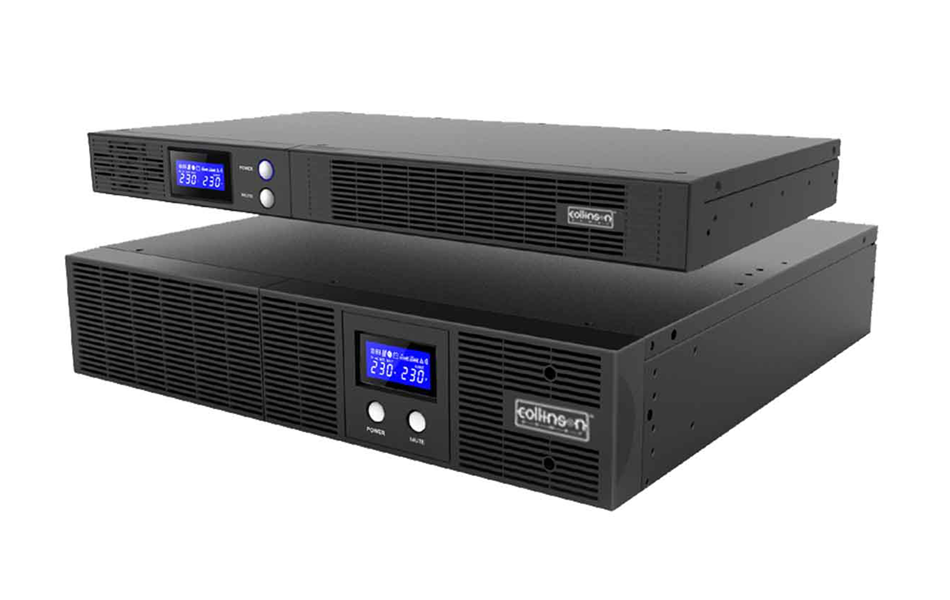

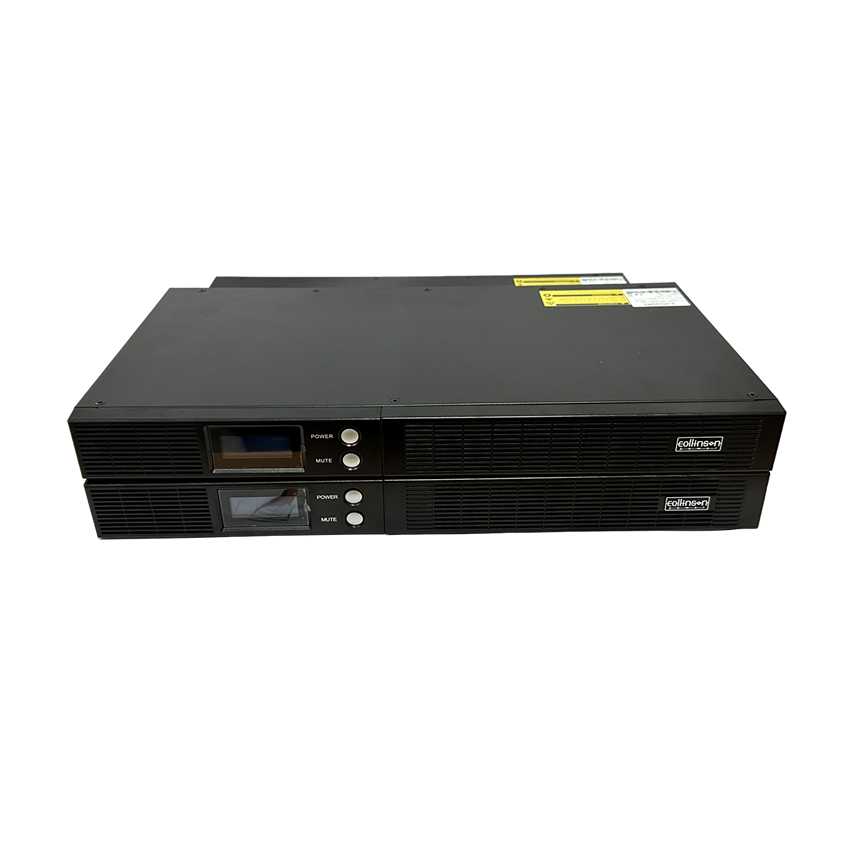

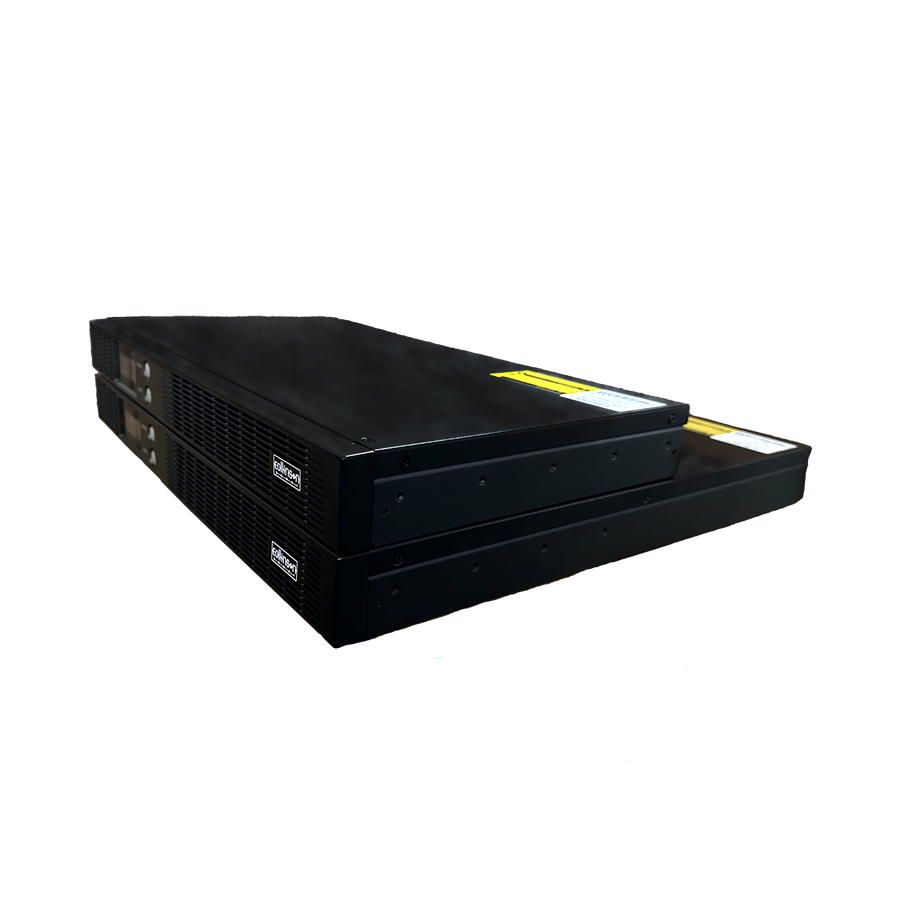

Pure Sine Wave Line-interactive UPS
for various IT environments
The PRO 37 pure sine wave line-interactive UPS product range is reliable and efficient. Using a low frequency design and automatic voltage regulation (AVR), the PRO 37 series ensures stability and power protection for its connected equipment. it also features a user-friendly LCD display, cold start function and generator compatibility.
With its HID USB, RS232, SNMP and Emergency Power Off (EPO) ports, the PRO 37 series integrates into IT environments easily, especially for servers, switches, voice/data networks, online storage systems and other critical equipment.
Technical Specification of PRO 37 Series (Rack 1U/2U model)*
| Model Name | PR37RU500 | PR37RU750 | PR37RU1K | PR37RU1K5 |
| Capacity | 500V / 300W | 750VA / 450W | 1000VA / 900W | 1500VA / 900W |
| Input | ||||
| Nominal Voltage | 220 - 240Vac | |||
| Voltage Range | 165 - 290Vac | |||
| Frequency | 50 / 60Hz (Auto-sensing) | |||
| Output | ||||
| Nominal Voltage (Battery mode) | 220 - 240Vac | |||
| Frequency (Battery mode) | 50 / 60 ± 1% Hz | |||
| Waveform (Battery mode) | Pure sine wave | |||
| THDv | ≤ 5% @ linear load, ≤ 10% @ non-linear load | |||
| Transfer Time | 4ms typical | |||
| Overload Protection | Circuit breaker or Inner firmware protection | |||
| Battery | ||||
| Battery Voltage | 12V | 24V | ||
| Recharge Time (to 90%) | 4H | |||
| Charging current | 1A | |||
| Indicators | ||||
| Display | LCD | |||
| Alarm | Battery mode, Low battery, Overload, Fault, etc. | |||
| Interface | ||||
| RS232 | Yes | |||
| HID Compliant USB Port | Yes | |||
| SNMP | Yes | |||
| EPO | Yes | |||
| RJ45 / RJ11 | NA | |||
| Management | ||||
| Auto Recharge | Yes | |||
| Auto Restart | Yes | |||
| Power Management Software | Yes | |||
| Physical | ||||
| Dimension (W x H x D) | 433 mm x 44 mm x 216 mm (1U) | 433 mm x 44 mm x 485 mm (1U) | ||
| Net Weight | 7.6 kg | 8.6 kg | 12 kg | 13 kg |
| Environment | ||||
| Operating Humidity | 0 - 90% non-condensing | |||
| Operating Temperature | 0- 40 °C | |||
* Specifications subject to change(s) without prior notification.
Warranty: 2 years limited warranty from manufacturing defects
