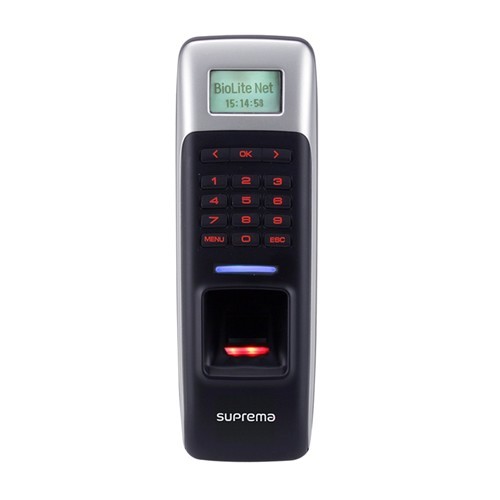

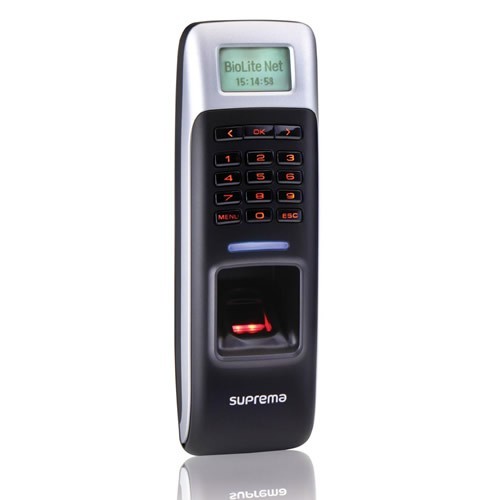

Suprema BioLite Net Fingerprint Access Control

Availability: In stock

$1,499.00

Quick Overview

  • Suprema BioLite Net
  • Fingerprint / Pin / Card Access
  • 5000 Fingerprint Users Capacity
  • TCP/IP, RS485 Communication
  • Versatile Interfaces
  • IP65 Waterproof Casing
  • Slim and Elegant Design
  • Installation Included
  • 1 Year Onsite Full Warranty

* Required Fields

Details

» Rugged structure for outdoor installation and extra durability
- IP65 rated waterproof and weatherproof structure

» Fast and accurate fingerprint identification
- Award winning fingerprint algorithm (No.1 in FVC2004 and FVC2006)
- 1 : 2,000 fingerprint identification in 1 second

» Easy installation and connectivity
- Network interface by TCP/IP or RS485
- Wiegand input/output configurable up to 64 bits
- Internal relay for direct lock interface (standalone control mode)

» Easy operation and management
- Built-in keypad and RF card reader for multi-modal user authentication (Fingerprint, PIN, card)
- Easy-to-use PC software for access control and time attendance
- Template on card to store fingerprint data on a smart card

» Slim and elegant design
- World’s smallest fingerprint terminal for time attendance and access control
- Slick and Slim design for narrow spaces
- Graphic LCD, Multi color LED and multi-tone buzzer for intuitive user interface

» Full access control features
- 128 access groups and time schedules
- Anti-passback door zones supporting 64 readers
- Tamper switch and duress finger option

» External relay unit
- Secure door control and I/O expansion (secure reader mode)

» Full installation, cabling, commissioning and user training
» One year onsite warranty

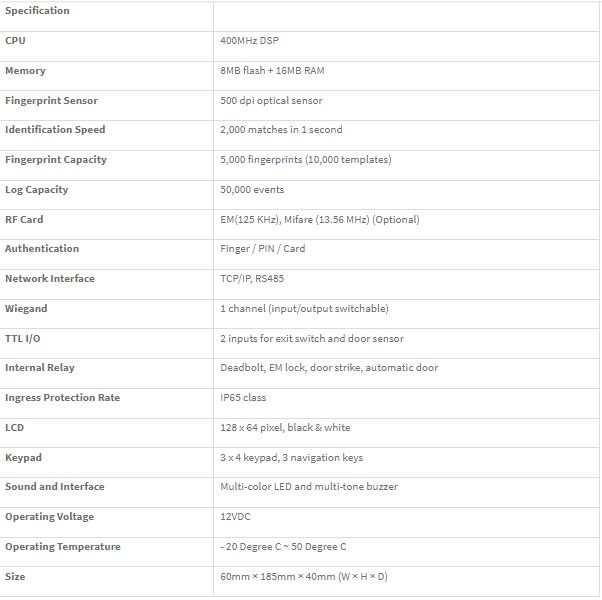

Specification



CPU

400MHz DSP

Memory

8MB flash + 16MB RAM

Fingerprint Sensor

500 dpi optical sensor

Identification Speed

2,000 matches in 1 second

Fingerprint Capacity

5,000 fingerprints (10,000 templates)

Log Capacity

50,000 events

RF Card

EM(125 KHz), Mifare (13.56 MHz) (Optional)

Authentication

Finger / PIN / Card

Network Interface

TCP/IP, RS485

Wiegand

1 channel (input/output switchable)

TTL I/O

2 inputs for exit switch and door sensor

Internal Relay

Deadbolt, EM lock, door strike, automatic door

Ingress Protection Rate

IP65 class

LCD

128 x 64 pixel, black & white

Keypad

3 x 4 keypad, 3 navigation keys

Sound and Interface

Multi-color LED and multi-tone buzzer

Operating Voltage

12VDC

Operating Temperature

- 20 Degree C ~ 50 Degree C

Size

60mm × 185mm × 40mm (W × H × D)
