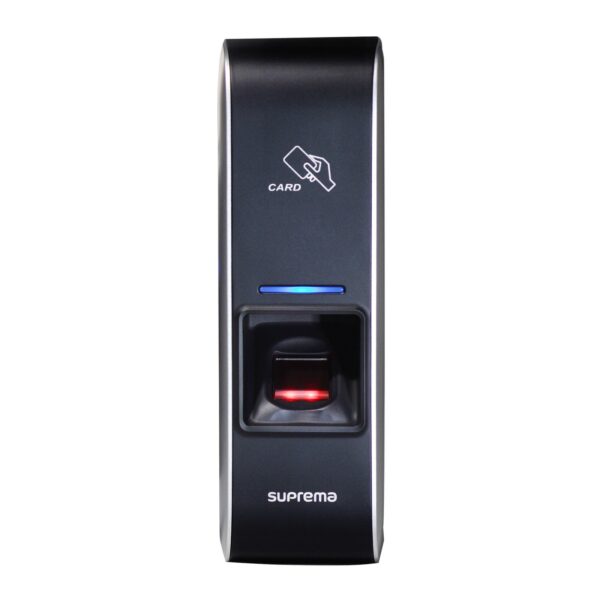

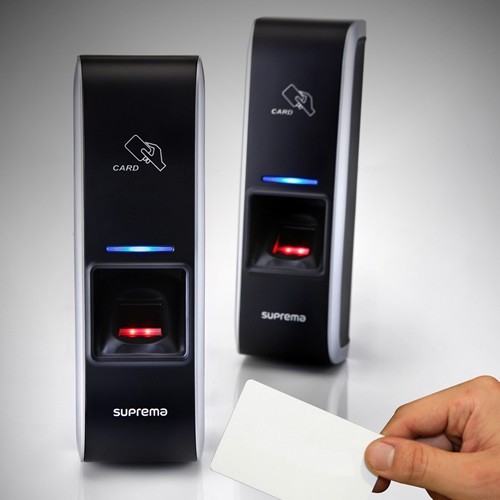

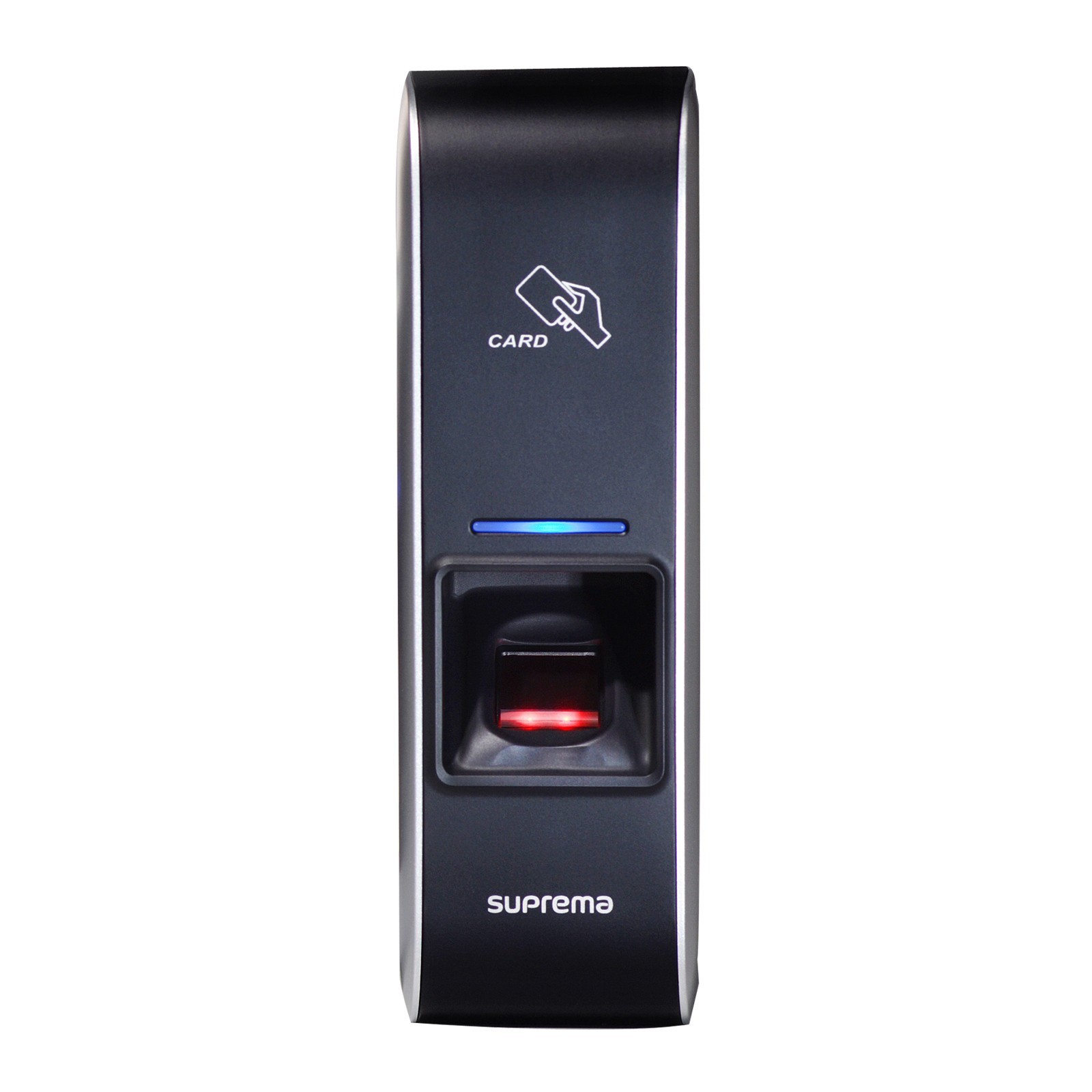

Suprema BioEntry Plus Fingerprint Access Control

Availability: In stock

$1,249.00

Quick Overview

  • Suprema BioEntry Plus
  • Fingerprint / Card Access Control
  • 5000 Fingerprint Users Capacity
  • TCP/IP, RS485 Communication
  • Versatile Interfaces
  • Slim and Elegant Design
  • Installation Included
  • 1 Year Onsite Full Warranty

* Required Fields

Details

» Easy user management through Command card
» Auto device search and synchronization within a network
» Support anti-Pass back function
» Industry leading fingerprint identification speed and capacity
» Easy operation and management (in network installations)
» User configurable I/O :can be connected to Switch, Tamper alarm, Relay
» Flexible interface (RS232/RS422/RS485, Wiegand output)

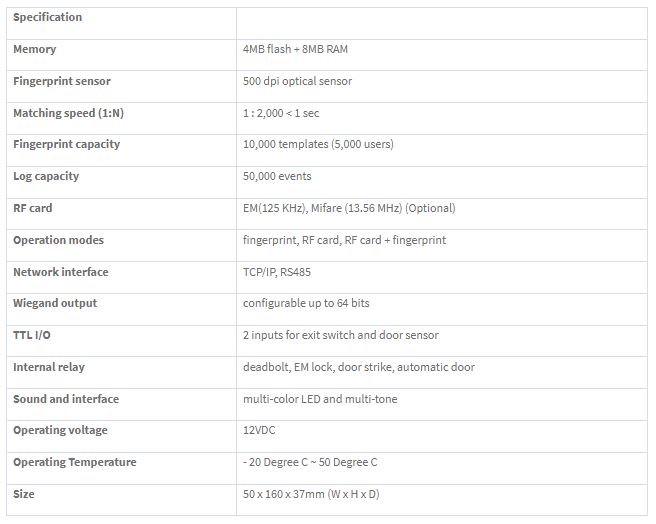

Specification



Memory

4MB flash + 8MB RAM

Fingerprint sensor

500 dpi optical sensor

Matching speed (1:N)

1 : 2,000 < 1 sec

Fingerprint capacity

10,000 templates (5,000 users)

Log capacity

50,000 events

RF card

EM(125 KHz), Mifare (13.56 MHz) (Optional)

Operation modes

fingerprint, RF card, RF card + fingerprint

Network interface

TCP/IP, RS485

Wiegand output

configurable up to 64 bits

TTL I/O

2 inputs for exit switch and door sensor

Internal relay

deadbolt, EM lock, door strike, automatic door

Sound and interface

multi-color LED and multi-tone

Operating voltage

12VDC

Operating Temperature

- 20 Degree C ~ 50 Degree C

Size

50 x 160 x 37mm (W x H x D)
