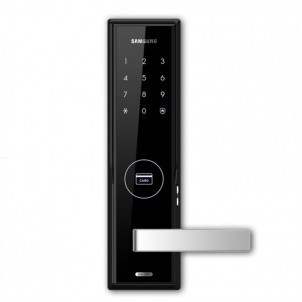

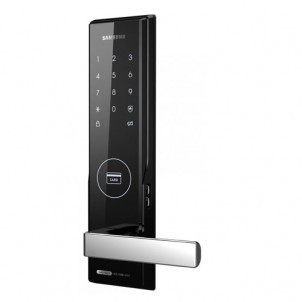

Sale Samsung SHS-H505 (SHS-5050) Digital Door Lock

Samsung SHS-H505 (SHS-5050) Digital Door Lock

Availability: In stock

Regular Price: $599.00

Special Price $540.00

Quick Overview

  • Samsung SHS-H505 Digital Lock
  • Authentic Samsung Digital Lock
  • Card / Password Identification
  • Override Key in Case of Malfunction
  • Up to 30 Cards / pin User Capacity
  • Support Auto / Manual Lock Mode
  • Fire Detection (Heat Sensor)
  • Burglar Alarm to Prevent Intruders
  • 10 Extra Cards / Keytags*
  • Installation Included in SG
  • Courier Charges Applicable for Overseas Purchase
  • 2-Years Product Warranty in SG

* Required Fields

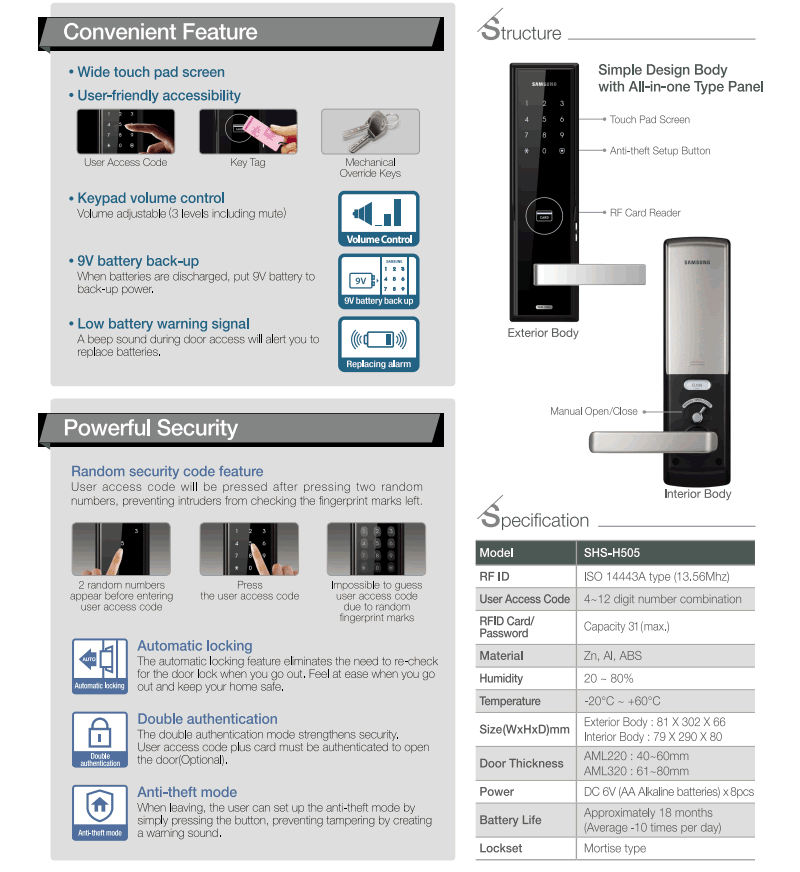

Samsung SHS-H505 (Also know as SHS-5050)

» Digital touch keypad with Random Security Codes
» User selectable 4~12 digits password
» Anti-panic exit system
» Anti-picking function
» Forced Locking and Relocking
» Automatic/ Manual locking modes
» Buglar alarm & Fire detection sensor
» Advanced operation logic
» Emergency external battery terminal
» Emergency mechanical bypass Key

*10 Free access cards or key tags (or mixed, 10 pcs in total) will be provided by (Owned & Managed by Wise Group Pte. Ltd.). The free access cards / key tags will be mailed out 5 working days after installation or payment whichever is later, upon email or phone request. The design and appearance of the free access cards / key tags are different from the original ones that come with the digital lock package. Only applicable to Singapore customers.

Warranty: 2 years product warranty with the first year service warranty from the date of delivery and installation. Warranty valid in Singapore only

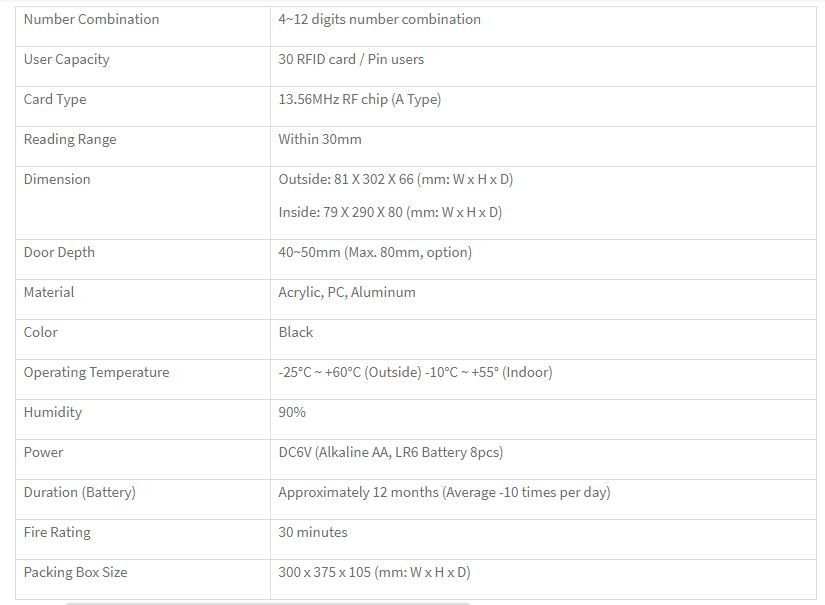

Number Combination

4~12 digits number combination

User Capacity

30 RFID card / Pin users

Card Type

13.56MHz RF chip (A Type)

Reading Range

Within 30mm


Outside: 81 X 302 X 66 (mm: W x H x D)

Inside: 79 X 290 X 80 (mm: W x H x D)

Door Depth

40~50mm (Max. 80mm, option)


Acrylic, PC, Aluminum



Operating Temperature

-25°C ~ +60°C (Outside) -10°C ~ +55° (Indoor)




DC6V (Alkaline AA, LR6 Battery 8pcs)

Duration (Battery)

Approximately 12 months (Average -10 times per day)

Fire Rating

30 minutes

Packing Box Size

300 x 375 x 105 (mm: W x H x D)
