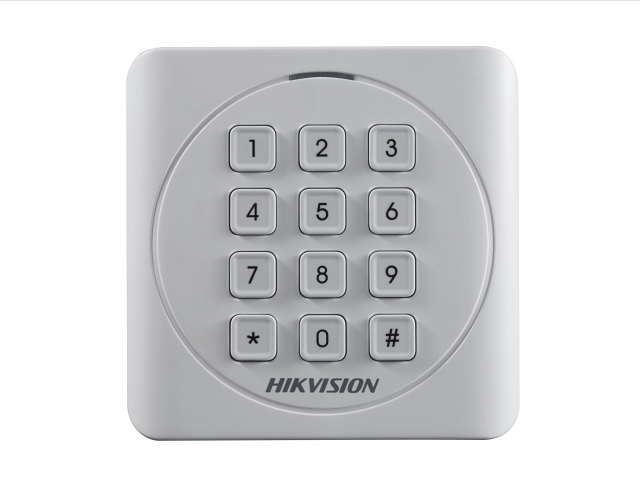

Sale SafeTrolley® Hikvision K1801EK Card Access Reader

SafeTrolley® Hikvision K1801EK Card Access

Availability: In stock

Regular Price: $450.00

Special Price $290.00

Quick Overview

  • Card / Card + Pin access control
  • Separate door controller for enhanced security
  • IP65 waterproof
  • Support iVMS-4200
  • Watchdog design
  • Wiegand (w26, w34) Protocol
  • 50,000 Access Records Capacity*
  • 10,000 Cards Capacity*
  • Normal, visitor, blacklisted, disabled, etc user modes*
  • Anti-Passback Function*
  • Multiple working hours template*
  • Time attendance report*
  • TCP/IP Communication + offline mode*
  • Standard Cabling & Installation Included
  • 1 Year Onsite Full Warranty
  • 1 to 1 Exchange Warranty

* Required Fields


Hikvision DS-K1801EK is the latest card access control system which has the following features:

  • PC+ABS material shell
  • Blue light display button design
  • IP65 Standard
  • Wiegand(w26, w34) protocol
  • Supports ID card recognition, and ID card number reading
  • Supports authentication methods such as card, and card & password
  • Supports opening door by swiping card
  • Watchdog design
  • High/low temperature resistant design (-20°C to + 65°C)

The separate controller of Hikvision DS-K2800 series enhances the access security. It is a series of powerful and stable access controller, using the logical architecture design. The uplink and downlink adopt TCP/IP and wiegand communicate respectively. Its signal processed with special encryption and can be run offline. Anti-tampering function is also supported.

When using Hikvision DS-K1801EK Door Reader and Hikvision DS-K2800 series Access Controller together, the main benefits are:

  • TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security
  • Supports Wiegand interface for accessing card reader. Wiegand interface supports W26/ W34 and is seamlessly compatible with third-party card reader
  • Massive storage with 10, 000 cards information and 50,000 card swiping records
  • Supports first card function, super card and super password function, online upgrade function and online remote control of the doors
  • Supports various card types such as normal/ disabled/blacklist/patrol/visitor/duress/ super card, etc.
  • Supports tamper-proof alarm for card reader, unsecured door alarm, forced entry door alarm, alarm for door opening timeout, duress alarm, and alarm for invalid card swiping attempts alarm, case in alarm and restore, insufficient storage alarm for offline event, network break alarm
  • The recognition and storage of card number with maximum 20 digits
  • Supports online and offline operating mode
  • Supports time synchronization via NTP, manual or automatic method
  • Data can be permanently saved when the access controller is powered off
  • Time attendance reporting function
