SafeTrolley E350 Card and Pin Access Control

Availability: In stock

$649.00

Quick Overview

  • Card / Pin Access Control System
  • Anti-vandal Metal Casing
  • Economical solution
  • Slim and Elegant Design
  • 2,000 Card Users Capacity
  • Standalone System
  • Easy Programming
  • Installation Included
  • 1 Year Onsite Full Warranty

* Required Fields

Details

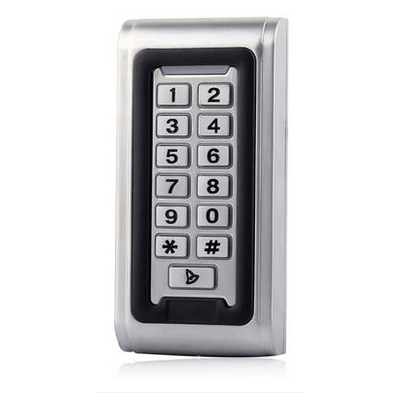

E350 is a economical, compact, robust and lightweight metal access controller with remarkable features such as dustproof, vandal resistant and slim design. It is suitable for installation in space limited area.

It is equipped with a keypad to operate in standalone mode by connecting a door lock, exit switch, alarm and door sensor to the relay contacts. This durable keypad is also backlit for ease of use in low lighting conditions.

Features:

  • Reads password and/or 125KHz EM card
  • Low power consumption (30mA)
  • Large user capacity: 2000 Users
  • Fast recognition (<0.1S)
  • Lighted keypad enable operation in dark environment
  • Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
  • Supports switch to Reader Mode and configurable wiegand 26 bit or 34 bit
  • Audible beep and visible indicator provide feedback for the user
  • Access control interfaces for electric lock, door sensor, alarm, exit button and doorbell
  • Lock Control Delay, Unlock Duration, Alarm Delay are programmable from 0 to 99 second
  • Optical tamper switch and multiple alarm outputs
  • Slim, elegant and rugged design

Specification

LED Indicator

Green, Red

Keypad

White backlit, Numeric keys 0~9, Function keys *, #, Bell

Verification Type

Card, PW, Card/PW, Card+PW

Built-in Card Reader

125kHz RFID proximity reader

Reader Range

3-6 cm

User Capacit

2000

Master Password

6-8 digits

Wiegand Interface

Wiegand output

Access Control interfaces

3rd party electric lock, door sensor, exit button, door alarm

Power Supply

12V DC

Operating Temperature

-20 °C - 50 °C

Operating Humidity

< 95%

Dimension (H x W x D):

115×55×20mm

Lock down mode

10 mins (10 failed verification)
