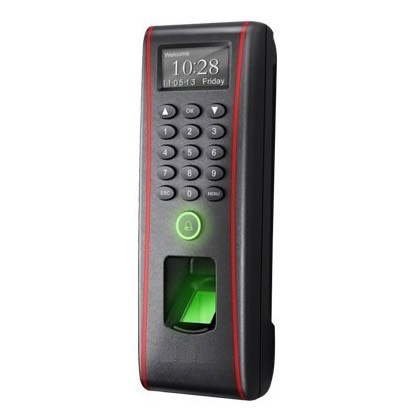

SafeTrolley E1700 Fingerprint Access Control

Availability: In stock

$1,049.00

Quick Overview

  • Fingerprint / Card / Pin Access
  • IP65 Waterproof
  • Sleek and Slim Design
  • Heavy Duty Fingerprint Sensor
  • Support 50 Timezones
  • 3000 Fingerprint Capacity
  • 30000 Cards Capacity
  • 100000 Reusable Transaction
  • TCP/IP, RS232 / 485, USB host
  • Installation Included
  • 1 Year Onsite Full Warranty
  • 1 to 1 Exchange Warranty

* Required Fields

Details





E1700 Fingerprint, Card and Password Access Control System (IP65 Waterproof Rated)

» Rugged structure for outdoor installation and extra durability
» IP65 rated waterproof and weatherproof structure
» Sleek and slim design for narrow spaces (One of the world's slimmest fingerprint terminals)
» Fast and accurate fingerprint algorithm
» 1:3000 fingerprint identification in 1 second
» Stores 3000 fingerprint templates, 30000 cards and 100000 transactions
» USB-host enabled
» Network interface by TCP/IP or RS485
» Wiegand input & output
» Full access control features
» Access control interface for 3rd party electric lock, door sensor, exit button, alarm
» Webserver
» Anti-passback setting
» Easy operation and management
» Be able to Work without computer (Standalone)
» Graphic LCD, buzzer, 3×5 keypads and doorbell Interface
» Built-in keypad and RF card reader for multi-modal authentication (fingerprint/PIN/card)

Specifications:

CPU

400MHz

Memory

128MB flash + 32MB RAM

Fingerprint Sensor

500 DPI optical sensor

Communication

TCP/IP, RS485, USB-host

Fingerprint Capacity

13,000 fingerprints

Log Capacity

100,000 events

RF Card

EM(125 KHz) / Mifare (13.56 MHz)

Authentication

Finger / PIN / Card

Wiegand Signal

Inputs & Outputs

Ingress Protection Rate

IP65

LCD

128 x 64 OLED with white color

Keypad

3 x 5 keypads & doorbell

Sound

Buzzer

Operating Voltage

12VDC

Operating Temperature

-10 °C~50 °C (14°F ~ 122°F)

Size

62.5mm × 185mm × 41.5mm (W × H × D
