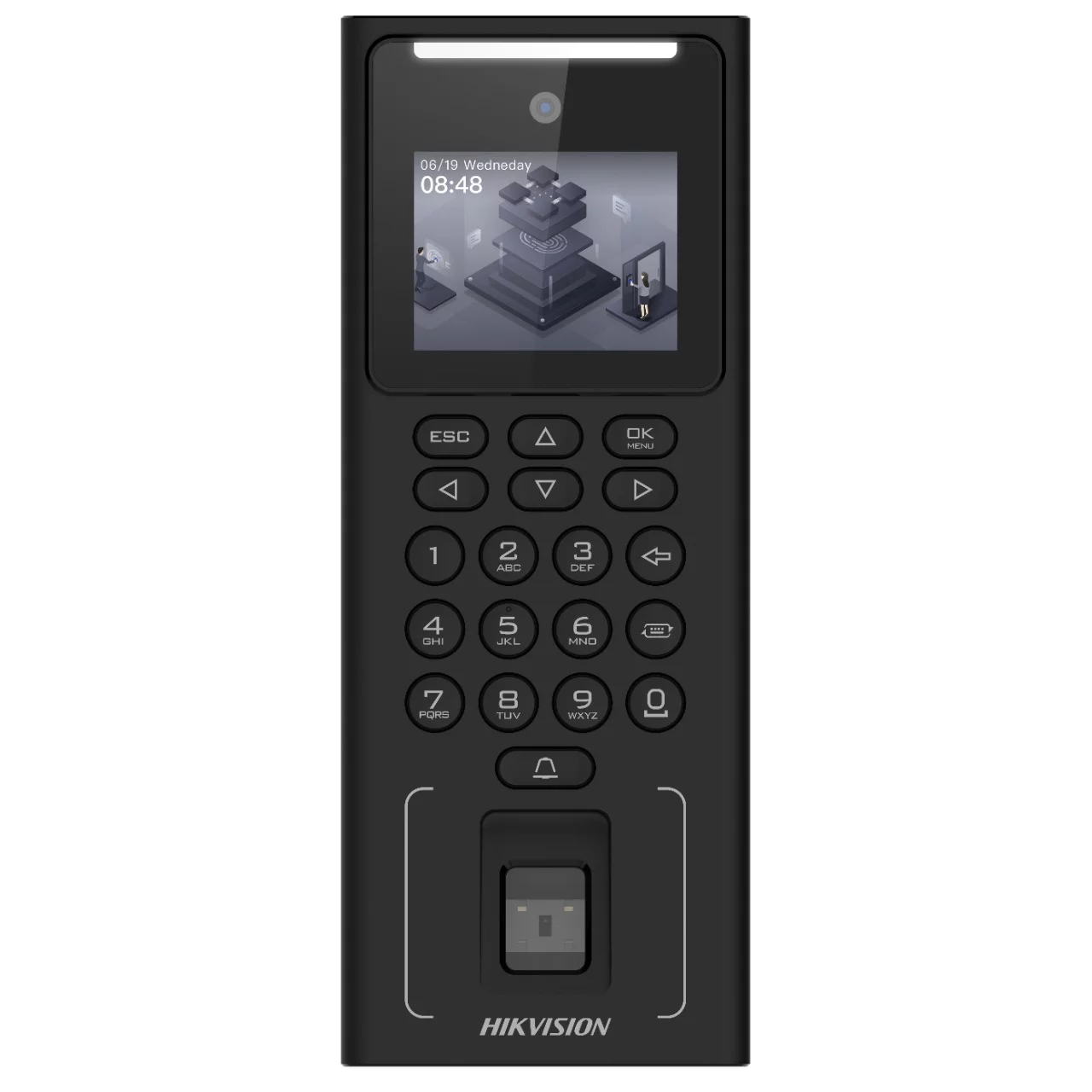

Hikvision DS-K1T321MFWX Facial Recognition Access Control with AP Connection

Hikvision DS-K1T321MFWX Facial Recognition Access Control with AP Connection. Face / Fingerprint / Card / Pin Access Control. Easy Wireless Access Point Connection. Wifi Ready. Slim Design. Highly Affordable Face Recognition Door Access Aontrol System.

The Hikvision Face Recognition Terminal DS-K1T321MFWX is part of the Value Series Face Access Terminal, offering advanced features for secure access control. Here's a breakdown of its key specifications:

Display and Camera:

2.4-inch LCD screen for clear visibility.
2 MP lens for accurate and detailed facial recognition.

Authentication Methods:

Supports multiple authentication methods, including:Face recognition.Fingerprint recognition. Card (M1 card) recognition. PIN (Personal Identification Number) entry.


Can store a maximum of 500 faces.
Supports up to 3000 cards.
Capable of storing 3000 fingerprints.
Records and stores up to 150,000 events.

Speed and Accuracy:

Face recognition duration is less than 0.2 seconds per user, ensuring quick and efficient access.
Protocol Support:

Supports ISAPI and ISUP 5.0 protocols for seamless integration with other systems.

Configuration can be done via the PC web client, providing a user-friendly interface. Mobile web client support for convenient on-the-go management.

Network Connectivity:

Supports both wired network connection and Wi-Fi (AP mode) for flexible installation options.
Integration with Door Control Unit:

Allows wiring with a secure door control unit or card reader via RS-485, enhancing overall security measures.

Hikvision Face Recognition Terminal DS-K1T321MFWX is a comprehensive access control solution with a range of authentication methods, high capacity, and quick recognition speeds, making it suitable for various security applications. The support for different protocols and easy configuration options further enhance its versatility and integration capabilities.

Installation Included.
1 Year Onsite Full Warranty.
1 to 1 Exchange Warranty.

Have a question? Want to have a quotation? Contact us now!

Fill in the below form. We will get back to you within a few working hours.




60 Albert Street, #09-05, Singapore 189969

Technical Support | Remote Support | DownloadHikvision Hik-Connect | Hikvision ivms-4200 | Dahua DMSS | Dahua iDMSS/gDMSS | Dahua SmartPSS | Resources | CCTV Storage Calculator | Share Device on Hik-Connect with Installer | Share Device on Hik-Connect with User | PayNow Payment | Video surveillance system (VSS) for construction

Install Door Access Control with EM Lock in Singapore. Every office needs a proper door access control system. The door access control system consists of a few components: an access control reader, a Electro-Magnetic Lock (EM lock), a power supply with back up battery, a door release button, an emergent break glass, a by-pass key, and a software which can control all the access control readers. There are various type of opening methods: facial recognition, fingerprint, card, password, barcode scanning, etc. The benefits of the door access control system include the auto-lock function, the transaction record keeping ability, and most importantly, the easy-to-manage nature which dramatically reduce the administrative work.

We have a full range of office door access control readers that come with the full door accessories (EM Lock, power supply, back up battery, door release button, by-pass key), and the software to monitor the access record. Installation service will be provided with no additional charge. Recognition methods includes: face recognition, fingerprint, car or password. Brands include HID, Hikvision, ZKTeco, Entrypass, Suprema & Safetrolley. Trusted office door access control system supplier in Singapore by over 10,000 customers.
